Tests & Continuous Integration

1. Why testing?

A majority of the production failures (77%) can be reproduced by a unit test.

— Yuan et al. OSDI 2014

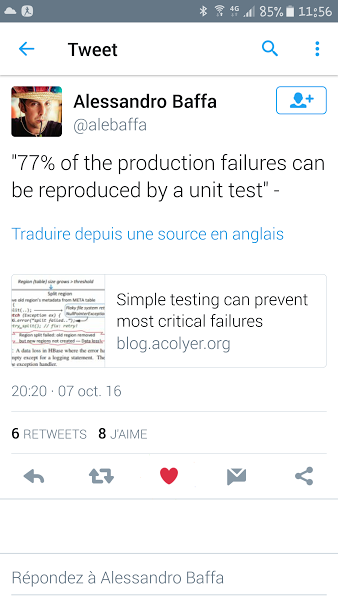

Figure 1. A recent tweet…

See https://blog.acolyer.org/2016/10/06/simple-testing-can-prevent-most-critical-failures/amp/

1.1. To deliver the good product

Figure 2. A product does what it’s supposed to do

1.2. If it works for 1 doesn’t necessarily for 100

Figure 3. Scalability issue

1.3. Murphy's law

Everything that can go wrong will eventually go wrong.

— Edward A. Murphy Jr.

Figure 4. Murphy’s law

1.4. Different OS or different terms

Figure 5. Diversity

1.5. To give the best

Figure 6. Doing the best

2. A concrete example of mandatory test

Asciidoctor Contribution

Figure 7. Around a beer with Dan Allen, Denver, Colorado #ILoveMyJob

Fork the repository.
Run bundle to install development dependencies.
Create a topic branch
Add tests for your unimplemented feature or bug fix. (See [writing-and-executing-tests])
Run bundle exec rake to run the tests. If your tests pass, return to step 4.
Implement your feature or bug fix.
Run bundle exec rake to run the tests. If your tests fail, return to step 6.
Add documentation for your feature or bug fix.
If your changes are not 100% documented, go back to step 8.
Add, commit, and push your changes.
Submit a pull request.

3. Concrete example of mandatory documentation

Figure 8. After a running with Gaël Blondel, Saint-Malo #ILoveMyJob

[…] an Eclipse project is providing extensible frameworks and applications accessible via documented APIs.

— Eclipse Development Process

4. Tests' Typology

Table 1. Difference between Verification & Validation (source https://www.tutorialspoint.com/software_testing/software_testing_quick_guide.htm)
Verification	Validation
Is the product good?	Is it the good product?
Are you building it right?	Are you building the right thing?
Mostly done by developers	Mostly done by client
Comes first	After verification most of the time

5. JUnit etc.

5.1. What to test?

Exceptions

@Test (expected = Exception.class)

Execution time

@Test(timeout=100)

Specific environment

System.getProperty("os.name").contains("Linux"));

5.2. Assertions

fail([message])

Force the test to fail

assertTrue([message,] condition)

Condition is true

assertFalse([message,] condition)

Condition is false

assertEquals([message,] expected, actual)

Two values are equal

assertNull([message,] object)

null object

assertSame([message,] expected, actual)

identical objects (same réf.)

5.3. Tests Strategies

Considering int add(int,int); from class myClass.

(source : http://stackoverflow.com/questions/8751553/how-to-write-a-unit-test)

//for normal addition
@Test
public void testAdd1Plus1() {
  int x  = 1 ; int y = 1;
  assertEquals(2, myClass.add(x,y));
}

Examples:

overflow
null parameters
negative parameters
…

(source : http://stackoverflow.com/questions/8751553/how-to-write-a-unit-test)

//if you are using 0 as default for null, make sure your class works in that case.
@Test
public void testAdd1Plus1() {
  int y = 1;
  assertEquals(0, myClass.add(null,y));
}

5.4. Tests order

None!!

JUnit assumes that all test methods can be executed in an arbitrary order. Well-written test code should not assume any order, i.e., tests should not depend on other tests.

— JUnit manual

5.5. What about graphical interfaces?

Example of the Robot library:

(source : http://stackoverflow.com/questions/16411823/junit-tests-for-gui-in-java)

Robot bot = new Robot();
bot.mouseMove(10,10);
bot.mousePress(InputEvent.BUTTON1_MASK);
//add time between press and release or the input event system may
//not think it is a click
try{Thread.sleep(250);}catch(InterruptedException e){}
bot.mouseRelease(InputEvent.BUTTON1_MASK);

Example of the swingcoder Eclipse plugin:

Figure 9. Simulation d’utilisation d’interface (source https://marketplace.eclipse.org/content/swingcorder)

5.6. Tests' coverage

Figure 10. Tests' coverage (IntelJ IDEA: https://www.jetbrains.com/idea/)

6. Concrete application

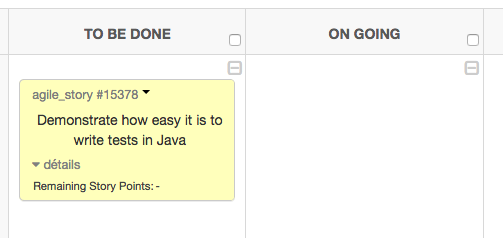

6.1. From `To Be Done` to `On going`

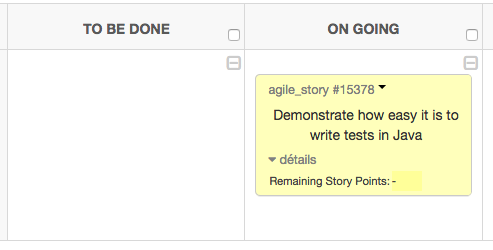

Table 2. Update your kanban

Figure 11. Confirmation

6.2. Create a specific branch (if new feature)

bruel (master) $ git checkout -b US-15378
Switched to a new branch 'US-15378'
bruel (US-15378) $

6.3. Write a failing test, then make it pass

6.4. Merge and do integration testing

bruel (US-15378) $ git commit -am "Adding push feature. Tests OK"
[US-15378 78f3242] Adding push feature. Tests OK
 1 file changed, 2 insertions(+), 3 deletions(-)
bruel (US-15378) $ git checkout devs
Switched to branch 'devs'
bruel (devs) $ git merge US-15378

6.5. Commit & Push in `devs`

bruel (devs) $ git commit -am "..."
...
bruel (devs) $ git push origin devs
...
bruel (devs) $ git branch -D US-15378
Deleted branch US-15378 (was f392a73).

6.6. From `On going` to `Review`

Figure 12. Update your kanban
