1. Objectifs

1.1. Une vérification systématique de l’état du code

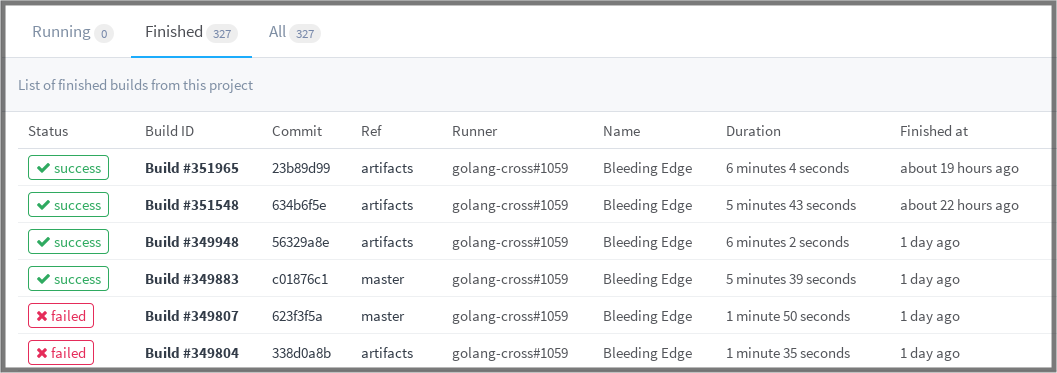

builds status
Figure 1. Résultats visibles et tracés

1.2. Environnement

On utilise gitlab-ci-multi-runner 1.6.0.

1.3. eXtreme Programming

Continuous Integration is a software development practice where members of a team integrate their work frequently, […​] leading to multiple integrations per day.
— Martin Fowler

1.4. Principe général

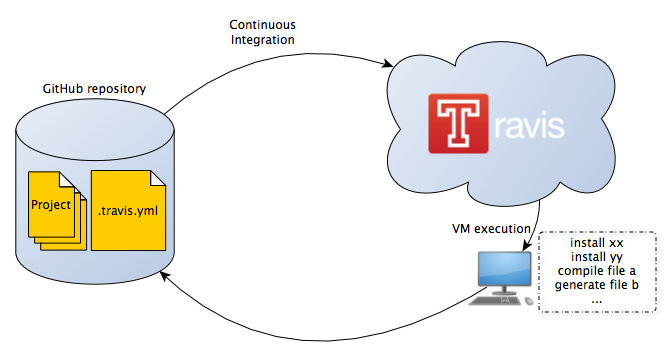

travis
Figure 2. Exemple d’Intégration Continue (github-travis)

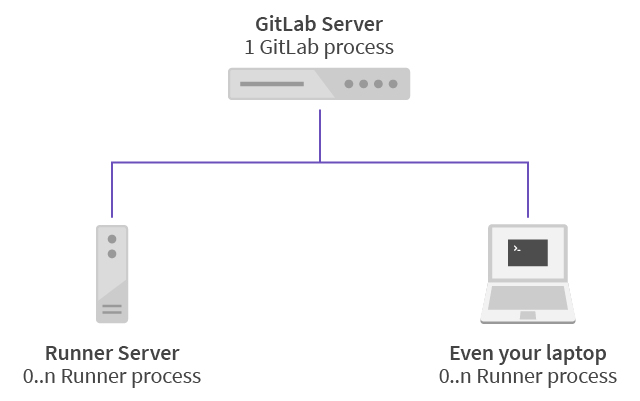

arch1
Figure 3. Architecture GitLab-CI (https://about.gitlab.com/gitlab-ci/)

1.5. YAML

YAML: YAML Ain’t Markup Language

Exemple de fihier .yml
---
receipt:     Oz-Ware Purchase Invoice
date:        2012-08-06
customer:
    first_name:   Dorothy
    family_name:  Gale
Utiliser des espaces et non des tabulations.

2. Utilisation

Un serveur d’intégration continue peut permettre de :

  • Faire les opérations type git (pull, checkout, push)

  • Compiler du code source ⇒ build

  • Créer des archives

  • Déployer du code sur une machine de test

  • Exécuter une suite de tests (Junit, Audit de code source, test IHM, …​)

  • Notifier des résultats (mail, RSS)

  • etc.

3. Services connus

Les serveurs d’intégration les plus connus (Wikipedia en compte plus de 40!) :

4. Pour notre environnement (GitLab)

4.1. Processus type

  1. Créer à la racine du projet un fichier .gitlab-ci.yml

  2. Y décrire ce que l’on souhaite réaliser

  3. "Pousser" dans le dépôt GitLab ses modifications

  4. Contrôler les résultats

4.2. Exemple (MPA2016-1B2)

image: node:4.2.2   (1)

all_tests:
  script:           (2)
   - npm install express --save
   - node ./myapp.js
1 Nom du "runner"
2 Instructions à réaliser sur la machine

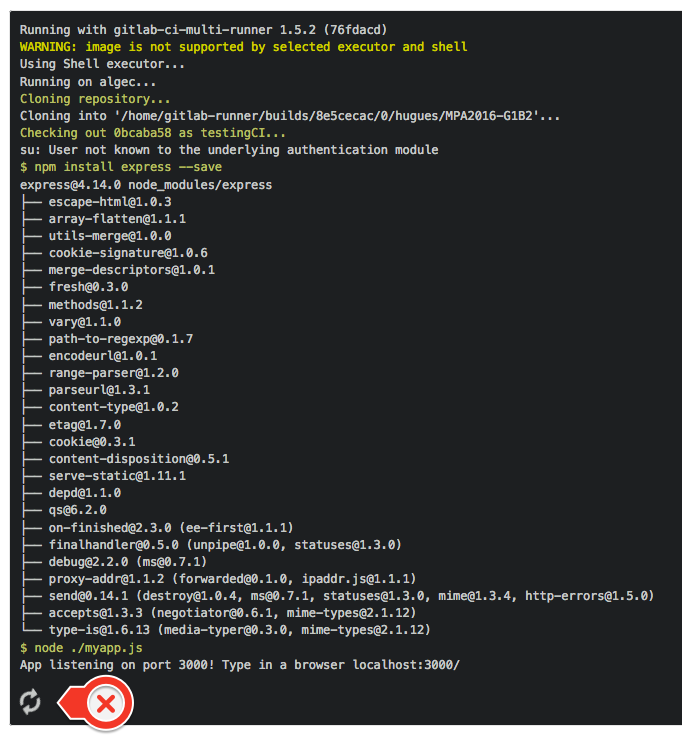

Résultat avec le fichier .gitlab-ci.yml précédent :

gitlabCI 1B2 1
Figure 4. Attention au code infini

Avec un fichier .gitlab-ci.yml plus conforme (exécution de tests) :

   - npm install express --save
   - node ./specs/start.js ./specs/async.spec.js

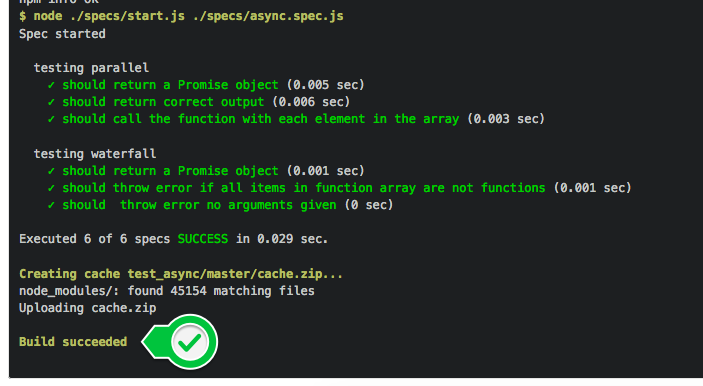

gitlabCI 1B2 2
Figure 5. Le build est un succès

test_async: stage: test script: - npm install - node ./specs/start.js ./specs/async.spec.js

4.3. Exemple HelloWorld

  1. Code java

  2. Petit main de test (pas unitaire)

  3. Compilation manuelle

  4. Build ant

  5. Améliorations

  6. Tests

  7. Eclipse

  8. Intégration continue

4.3.1. Code java

Consultez le tutoriel ant : https://ant.apache.org/manual/tutorial-HelloWorldWithAnt.html
src/HelloWorld.java
package org.jmb;
public class HelloWorld
{
   private String name = "";
   public String getName()
   {
      return name;
   }
   public String getMessage()
   {
      if (name == "")
      {
         return "Hello!";
      }
      else
      {
         return "Hello " + name + "!";
      }
   }
   public void setName(String name)
   {
      this.name = name;
   }
}

4.3.2. Petit main de test (pas unitaire)

src/Main.java
package org.jmb;
public class Main {
	public static void main(String[] args) {
	      HelloWorld h = new HelloWorld();
	      h.setName("JMB");
	      System.out.println(h.getMessage());
	}
}

4.3.3. Compilation manuelle

$ javac -sourcepath src -d bin/ src/Main.java
$ ls bin
HelloWorld.class	Main.class
$ java -cp bin Main
Hello JMB!

4.3.4. Build ant

build.xml
<project>
    <target name="clean">
        <delete dir="bin"/>
    </target>

    <target name="build">
        <mkdir dir="bin"/>
        <javac srcdir="src" destdir="bin"/>
    </target>

    <target name="jar">
        <mkdir dir="bin/jar"/>
        <jar destfile="bin/jar/HelloWorld.jar" basedir="bin">
            <manifest>
                <attribute name="Main-Class" value="Main"/>
            </manifest>
        </jar>
    </target>

    <target name="run">
        <java jar="bin/jar/HelloWorld.jar" fork="true"/>
    </target>

</project>
$ ant clean build jar
$ ant run
Buildfile: /Users/bruel/HelloWorld/build.xml

run:
     [java] Hello JMB!

BUILD SUCCESSFUL
Total time: 0 seconds

4.3.5. Améliorations

build.xml (amélioré)
<project name="HelloWorld" basedir="." default="main">

    <property name="src.dir"     value="src"/>
    <property name="build.dir"   value="bin"/>
    <property name="classes.dir" value="${build.dir}/classes"/>
    <property name="jar.dir"     value="${build.dir}/jar"/>

    <property name="main-class"  value="Main"/>



    <target name="clean">
        <delete dir="${build.dir}"/>
    </target>

    <target name="compile">
        <mkdir dir="${classes.dir}"/>
        <javac srcdir="${src.dir}" destdir="${classes.dir}"/>
    </target>

    <target name="jar" depends="compile">
        <mkdir dir="${jar.dir}"/>
        <jar destfile="${jar.dir}/${ant.project.name}.jar" basedir="${classes.dir}">
            <manifest>
                <attribute name="Main-Class" value="${main-class}"/>
            </manifest>
        </jar>
    </target>

    <target name="run" depends="jar">
        <java jar="${jar.dir}/${ant.project.name}.jar" fork="true"/>
    </target>

    <target name="clean-build" depends="clean,jar"/>

    <target name="main" depends="clean,run"/>

</project>
$ ant
Buildfile: /Users/bruel/HelloWorld/build.xml

clean:
   [delete] Deleting directory /Users/bruel/HelloWorld/bin

compile:
    [mkdir] Created dir: /Users/bruel/HelloWorld/bin/classes
    [javac] Compiling 2 source files to /Users/bruel/HelloWorld/bin/classes

jar:
    [mkdir] Created dir: /Users/bruel/HelloWorld/bin/jar
      [jar] Building jar: /Users/bruel/HelloWorld/bin/jar/HelloWorld.jar

run:
     [java] Hello JMB!

main:

BUILD SUCCESSFUL
Total time: 1 second

4.3.6. Tests

src/TestHelloWorld.java (failing)
package org.jmb;
public class TestHelloWorld extends junit.framework.TestCase {

    public void testNothing() {
    }

    public void testWillAlwaysFail() {
        fail("An error message");
    }

}
build.xml (librairies extérieures)
<project name="HelloWorld" basedir="." default="main">

    <property name="src.dir"     value="src"/>
    <property name="build.dir"   value="bin"/>
    <property name="classes.dir" value="${build.dir}/classes"/>
    <property name="jar.dir"     value="${build.dir}/jar"/>

    <property name="main-class"  value="Main"/>

    <property name="lib.dir"     value="lib"/>

    <path id="classpath">
        <fileset dir="${lib.dir}" includes="**/*.jar"/>
    </path>

    <target name="clean">
        <delete dir="${build.dir}"/>
    </target>

    <target name="compile">
        <mkdir dir="${classes.dir}"/>
        <javac srcdir="${src.dir}" destdir="${classes.dir}"  classpathref="classpath"/>
    </target>

    <target name="jar" depends="compile">
        <mkdir dir="${jar.dir}"/>
        <jar destfile="${jar.dir}/${ant.project.name}.jar" basedir="${classes.dir}">
            <manifest>
                <attribute name="Main-Class" value="${main-class}"/>
            </manifest>
        </jar>
    </target>

    <path id="application" location="${jar.dir}/${ant.project.name}.jar"/>

    <target name="run" depends="jar">
        <java fork="true" classname="${main-class}">
            <classpath>
                <path refid="classpath"/>
                <path refid="application"/>
                <path location="${jar.dir}/${ant.project.name}.jar"/>
            </classpath>
        </java>
    </target>

    <target name="junit" depends="jar">
        <junit printsummary="yes">
            <classpath>
                <path refid="classpath"/>
                <path refid="application"/>
            </classpath>

            <batchtest fork="yes">
                <fileset dir="${src.dir}" includes="TestHelloWorld.java"/>
            </batchtest>
        </junit>
    </target>

    <target name="clean-build" depends="clean,jar"/>

    <target name="main" depends="clean,run"/>

</project>
$ ant junit
Buildfile: /Users/bruel/HelloWorld/build.xml

compile:

jar:

junit:
    [junit] Running TestHelloWorld
    [junit] Tests run: 2, Failures: 1, Errors: 0, Skipped: 0, Time elapsed: 0,003 sec
    [junit] Test TestHelloWorld FAILED

BUILD SUCCESSFUL
Total time: 1 second
src/TestHelloWorld.java (un vrai ce coup-ci)
package org.jmb;
import static org.junit.Assert.*;

import org.junit.Before;
import org.junit.Test;


public class TestHelloWorldReal {

   private HelloWorld h;

   @Before
   public void setUp() throws Exception
   {
      h = new HelloWorld();
   }

   @Test
   public void testHelloEmpty()
   {
      assertEquals(h.getName(),"");
      assertEquals(h.getMessage(),"Hello!");
   }

   @Test
   public void testHelloWorld()
   {
      h.setName("World");
      assertEquals(h.getName(),"World");
      assertEquals(h.getMessage(),"Hello World!");
   }
}

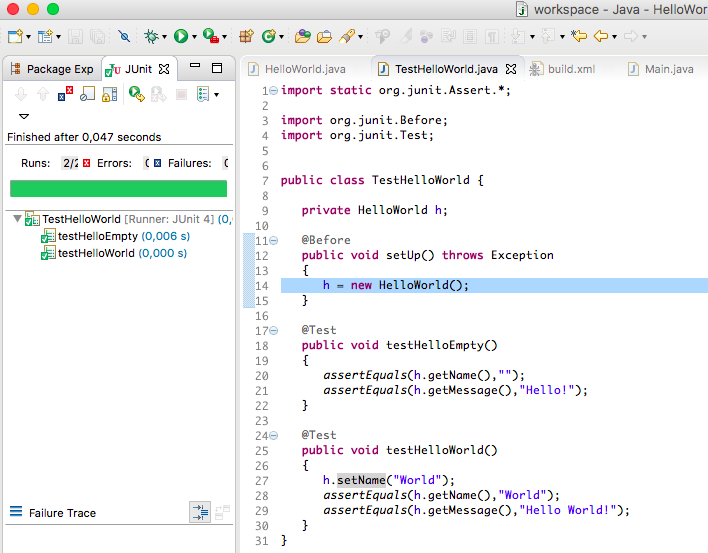

eclipseTest
Figure 6. Un test exécuté sous eclipse

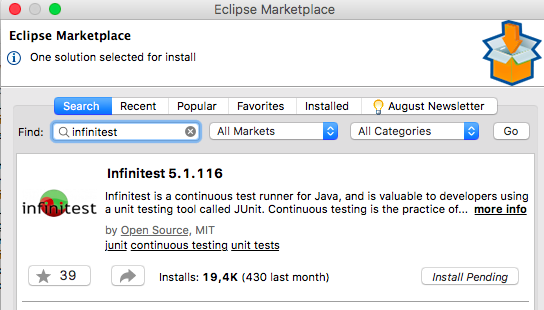

Ne pas hésiter à utiliser le plugin infinitest.

infinitest
Figure 7. Utilisation d’infinitest sous eclipse

4.3.7. Eclipse

Profiter de la génération de fichier de build ant par Eclipse!

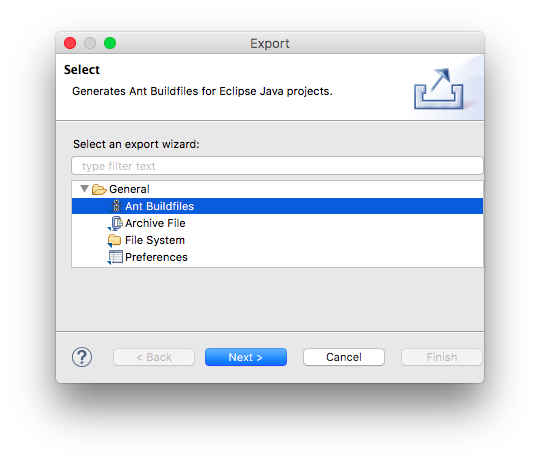

exportAnt
Figure 8. Export du bild ant sous eclipse
build.xml (généré par eclipse)
<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<!-- WARNING: Eclipse auto-generated file.
              Any modifications will be overwritten.
              To include a user specific buildfile here, simply create one in the same
              directory with the processing instruction <?eclipse.ant.import?>
              as the first entry and export the buildfile again. --><project basedir="." default="build" name="HelloWorld">
    <property environment="env"/>
    <property name="junit.output.dir" value="junit"/>
    <property name="debuglevel" value="source,lines,vars"/>
    <property name="target" value="1.8"/>
    <property name="source" value="1.8"/>
    <path id="JUnit 4.libraryclasspath">
        <pathelement location="../../../.p2/pool/plugins/org.junit_4.12.0.v201504281640/junit.jar"/>
        <pathelement location="../../../.p2/pool/plugins/org.hamcrest.core_1.3.0.v201303031735.jar"/>
    </path>
    <path id="HelloWorld.classpath">
        <pathelement location="bin"/>
        <path refid="JUnit 4.libraryclasspath"/>
    </path>
    <target name="init">
        <mkdir dir="bin"/>
        <copy includeemptydirs="false" todir="bin">
            <fileset dir="src">
                <exclude name="**/*.launch"/>
                <exclude name="**/*.java"/>
            </fileset>
        </copy>
    </target>
    <target name="clean">
        <delete dir="bin"/>
    </target>
    <target depends="clean" name="cleanall"/>
    <target depends="build-subprojects,build-project" name="build"/>
    <target name="build-subprojects"/>
    <target depends="init" name="build-project">
        <echo message="${ant.project.name}: ${ant.file}"/>
        <javac debug="true" debuglevel="${debuglevel}" destdir="bin" includeantruntime="false" source="${source}" target="${target}">
            <src path="src"/>
            <classpath refid="HelloWorld.classpath"/>
        </javac>
    </target>
    <target description="Build all projects which reference this project. Useful to propagate changes." name="build-refprojects"/>
    <target name="Main">
        <java classname="org.jmb.Main" failonerror="true" fork="yes">
            <classpath refid="HelloWorld.classpath"/>
        </java>
    </target>
    <target name="TestHelloWorld">
        <mkdir dir="${junit.output.dir}"/>
        <junit fork="yes" printsummary="withOutAndErr">
            <formatter type="xml"/>
            <test name="org.jmb.TestHelloWorld" todir="${junit.output.dir}"/>
            <jvmarg line="-ea"/>
            <classpath refid="HelloWorld.classpath"/>
        </junit>
    </target>
    <target name="junitreport">
        <junitreport todir="${junit.output.dir}">
            <fileset dir="${junit.output.dir}">
                <include name="TEST-*.xml"/>
            </fileset>
            <report format="frames" todir="${junit.output.dir}"/>
        </junitreport>
    </target>
</project>

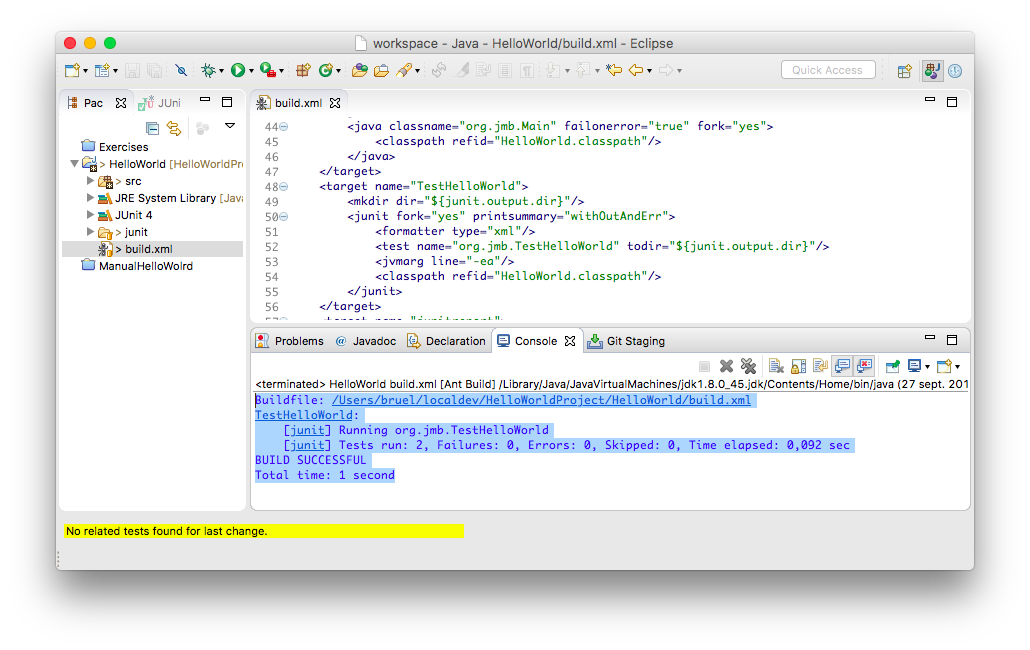

runAnt
Figure 9. Run de ant sous eclipse

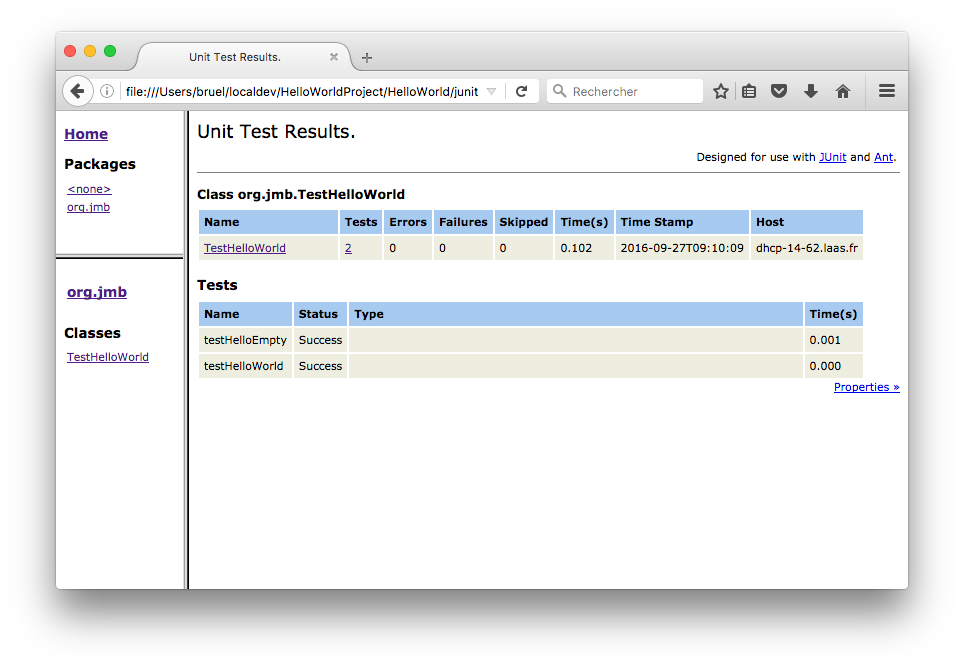

Autre avantage de junit, la génération de pages web (répertoire junit, ouvrir index.html).

junitreport
Figure 10. Présentation des résultats de test

4.3.8. Integration Continue

 .gitlab-ci.yml (ajouté à la racine du projet git)
image: openjdk:8

before_script:
  - apt-get update
  - apt-get -y install ant

stages:
  - build
  - test

ci_build:
  stage: build
  script:
    - cd HelloWorld
    - ant clean
    - ant build

ci_test:
  stage: test
  script:
    - cd HelloWorld
    - ant clean build TestHelloWorld
Il faut modifier éventuellement le build.xml, souvent trop lié à Eclipse.

5. Divers

5.1. Quand on ne veux pas lancer l’IC

git commit -m "Blabla... [ci skip]"

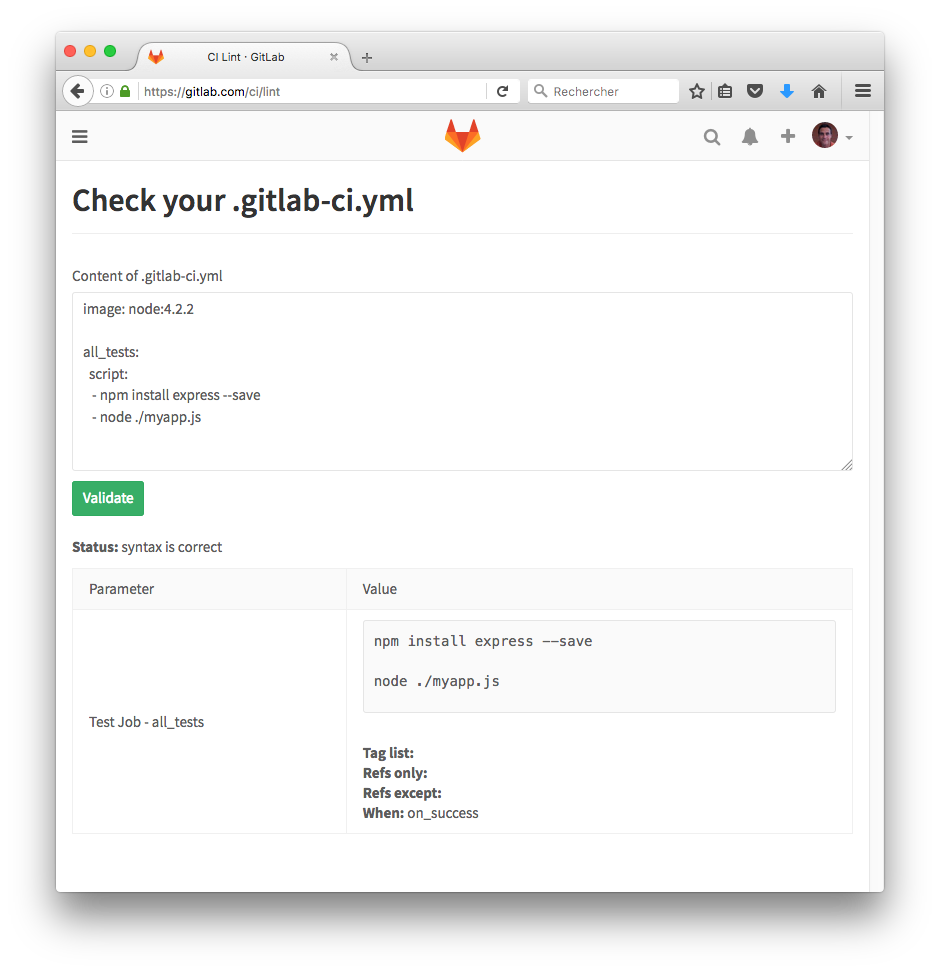

5.2. Pour vérifier la syntaxe de son fichier YAML

Possibilité de tester son fichier gitlab-ci.yml :

https://gitlab.com/ci/lint

lint
Figure 11. Validation de son code YAML

6. Liens utiles

Le site de référence

https://about.gitlab.com/gitlab-ci/

Un tuto en français sur l’IC sous GitLab (merci @npm_kader)

https://www.grafikart.fr/tutoriels/divers/gitlab-ci-docker-808
